1.5KE39A

ProducentMulticomp CompanyEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
1.5KE39A_MULTICOMP_COMPANY
0,00 zł

Zapytaj o ten produkt

Opis / 1.5KE39A

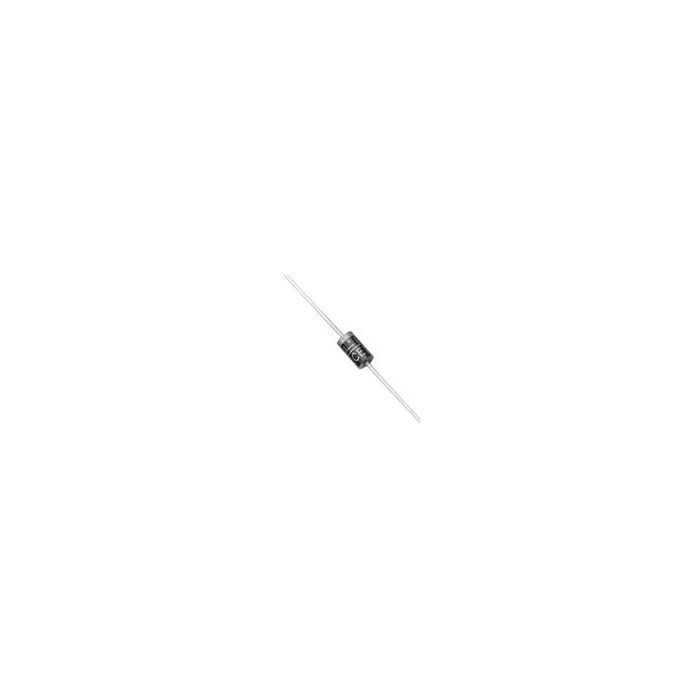

Diode TVS Single Uni-Dir 33.3V 1.5KW 2-Pin DO-201

Informacje podstawowe

  • ProducentMulticomp Company
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1289
  • Inventory 3
  • MaskPart 1.5KE39A%
  • IntroductionDate Feb 05, 2012

Parametry

  • Configuration Single
  • Direction Type Uni-Directional
  • Maximum Breakdown Voltage (V) 41
  • Maximum Clamping Voltage (V) 53.9
  • Maximum Operating Temperature (°C) 175
  • Maximum Peak Pulse Current (A) 28
  • Maximum Reverse Leakage Current (uA) 5
  • Maximum Reverse Stand-Off Voltage (V) 33.3
  • Maximum Storage Temperature (°C) 175
  • Minimum Breakdown Voltage (V) 37.1
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -55
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) -55 to 150
  • Peak Pulse Power Dissipation (W) 1500(Min)
  • Supplier Temperature Grade N/A
  • Test Current (mA) 1
  • Tradename N/A

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Uni-Dir 33.3V 1.5KW 2-Pin DO-201
