1.5KE36CA

ProducentWorld ProductsEURoHSYes with Exemption (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
1.5KE36CA_WORLD_PRODUCTS
0,00 zł

Zapytaj o ten produkt

Opis / 1.5KE36CA

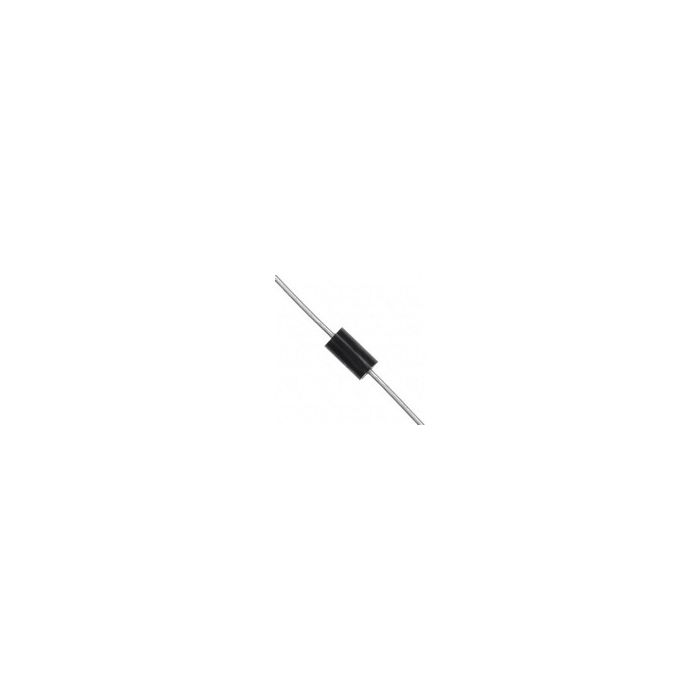

Diode TVS Single Bi-Dir 30.8V 1.5KW 2-Pin DO-13 T/R

Informacje podstawowe

  • ProducentWorld Products
  • EURoHSYes with Exemption (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 178
  • Inventory 3
  • MaskPart 1.5KE36CA%
  • IntroductionDate Jan 01, 2000

Parametry

  • Configuration Single
  • Direction Type Bi-Directional
  • Maximum Breakdown Voltage (V) 37.8
  • Maximum Clamping Voltage (V) 49.9
  • Maximum Operating Temperature (°C) 175
  • Maximum Peak Pulse Current (A) 30
  • Maximum Reverse Leakage Current (uA) 5
  • Maximum Reverse Stand-Off Voltage (V) 30.8
  • Maximum Storage Temperature (°C) 175
  • Minimum Breakdown Voltage (V) 34.2
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -55
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) N/A
  • Peak Pulse Power Dissipation (W) 1500
  • Supplier Temperature Grade N/A
  • Test Current (mA) 1

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Bi-Dir 30.8V 1.5KW 2-Pin DO-13 T/R
