1.5KE27A
Do pobrania | Download |
---|---|

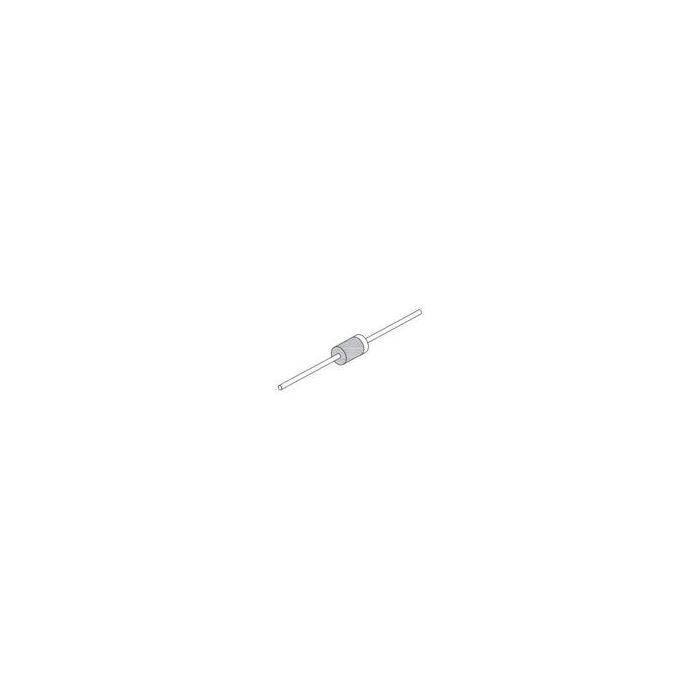

Main description | Diode TVS Single Uni-Dir 23.1V 1.5KW 2-Pin Case 1.5KE |
Diode TVS Single Uni-Dir 23.1V 1.5KW 2-Pin Case 1.5KE
Informacje podstawowe
- ProducentTaitron Components
- Automotive Unknown
Informacje dodatkowe
- MaskPart 1.5KE27A%
- IntroductionDate Aug 21, 2012
Parametry
- Capacitance Value (pF) N/A
- Configuration Single
- Direction Type Uni-Directional
- Maximum Breakdown Voltage (V) 28.4
- Maximum Clamping Voltage (V) 37.5
- Maximum Forward Voltage (V) 3.5
- Maximum Peak Pulse Current (A) 40.5
- Maximum Reverse Leakage Current (uA) 1
- Maximum Reverse Stand-Off Voltage (V) 23.1
- Maximum Storage Temperature (°C) 175
- Minimum Breakdown Voltage (V) 25.7
- Minimum Storage Temperature (°C) -55
- Number of Elements per Chip 1
- Peak Forward Surge Current (A) 200
- Peak Pulse Power Dissipation (W) 1500
- Supplier Temperature Grade N/A
- Test Current (mA) 1
- Tradename N/A
