1.5KE18A

ProducentGood-Ark SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
1.5KE18A_GOOD-ARK_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / 1.5KE18A

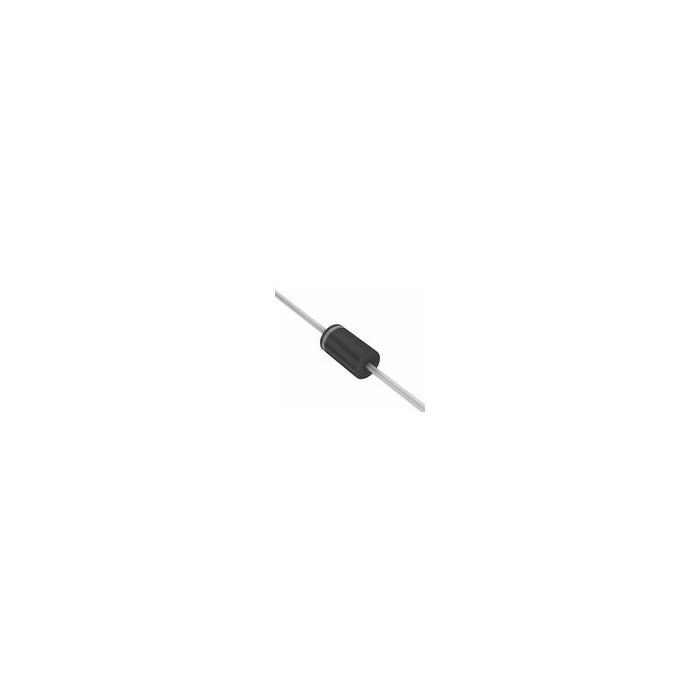

Diode TVS Single Uni-Dir 15.3V 1.5KW 2-Pin DO-201AE

Informacje podstawowe

  • ProducentGood-Ark Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1073
  • MaskPart 1.5KE18A%
  • IntroductionDate Apr 23, 2002

Parametry

  • Configuration Single
  • Direction Type Uni-Directional
  • Maximum Breakdown Voltage (V) 18.9
  • Maximum Clamping Voltage (V) 25.2
  • Maximum Operating Temperature (°C) 175
  • Maximum Peak Pulse Current (A) 59.5
  • Maximum Reverse Leakage Current (uA) 1
  • Maximum Reverse Stand-Off Voltage (V) 15.3
  • Maximum Storage Temperature (°C) 175
  • Minimum Breakdown Voltage (V) 17.1
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -55
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) -55 to 175
  • Peak Pulse Power Dissipation (W) 1500(Min)
  • Supplier Temperature Grade N/A
  • Test Current (mA) 1

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Uni-Dir 15.3V 1.5KW 2-Pin DO-201AE
